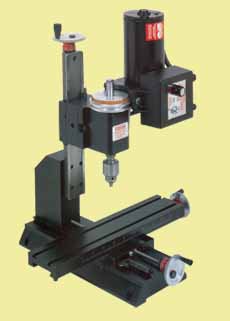

  Vertical Milling Machine


TECHNICAL SPECIFICATION
FEATURE

5000 (5100)

5400(5410)

2000 (2010)


Max clearance, table to spindle

8.00" (203 mm)

8.00" (203 mm)

9.00" (229 mm)
Throat (without headstock spacer block) 2.25" (50 mm) 2.25" (50 mm) Adjustable
Throat (with headstock spacer block) Not included, but 3.50" (89 mm) if optional block is purchased Included, 3.50" (89 mm) Not required

Travel, "X" Axis

8.00" (203 mm)

8.00" (203 mm)

8.00" (203 mm)

Travel, "Y" Axis

3.00" (76 mm)

5.00" (127 mm)

7.00" (178 mm)

Travel, "Z" Axis

6.25" (159 mm)

6.25" (159 mm).

5.38" (137 mm)

Hole through spindle

.405" (10 mm)

.405" (10 mm)

.405 (10 mm)

Spindle nose thread

3/4-16 T.P.I.

3/4-16 T.P.I.

3/4-16 T.P.I.

Spindle taper

#1 Morse

#1 Morse.

#1 Morse

Handwheel graduations

.001" (.01 mm)

.001" (.01 mm)

.001" (.01 mm)
Motor

1/3 HP DC with electronic speed control (Accepts 100 VAC to 240 VAC, 50 - 60 Hz input and converts automatically to 90 VDC)

Spindle speed range

70 to 2800 RPM continuously variable with electronic speed control

Width overall*

14.75" (375 mm)

15.00" (381 mm)

15.00 (381 mm)

Depth overall*

11.75" (298 mm)

14.00" (356 mm)

22.25" (565 mm)

Height overall*

20.75" (527 mm)

20.75" (527 mm)

23.38" (568 mm)

Table size

2.75" x 13.00" (70 x 330 mm)

2.75" x 13.00" (70 x 330 mm)

2.75" x 13.00" (70 x 330 mm)

Hold down provision

2 "T" Slots

2 "T" Slots

2 "T" Slots

Shipping weight

33 lb. (15.0 kg)

36 lb. (16.3 kg)

38 lb. (17.2 kg)

Movements in addition to X-, Y- and Z-axes

Headstock rotation 90° left/right

Headstock rotation 90° left/right

Headstock rotation 90° left/right, column rotation (90° L/R), column pivot (front/back), column swing (90° L/R) and 5.5" column travel (in/out)
