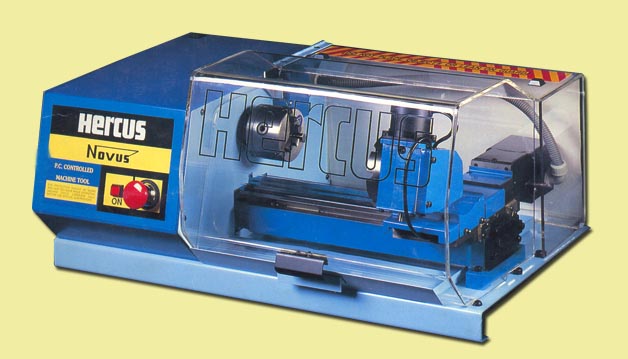

NOVUS PC 160 |
|
| |
|
|
| |
|
|
| |
| TECHNICAL SPECIFICATION |
| MACHINE |
METRIC |
IMPERIAL |
| |
|
|
| Swing over bed |
160mm |
6.25" |
| Swing over cross slide |
80mm |
3.10" |
| Distance between centres |
210mm |
8.25" |
| Travel 'Z' axis |
250mm |
9.85" |
| Travel 'X' axis |
60mm |
2.40" |
| Spindle bore |
16mm |
5/8" |
| Spindle taper |
No 2 Morse |
|
| Spindle Speed inf.variable |
0 - 4500 RPM |
|
| Feed rate |
Feed rate |
0-140"/min |
| Rapid rate |
4m/min |
150"/min |
| Spindle motor |
.38kw |
.5hp |
| Axis motor |
80 w |
.1hp |
| Axis screw 'z' diameter |
11.1mm x 2mmp |
|
| Axis screw 'y' diameter |
9.75mm x 2mmp |
|
| Chuck 3 jaw self centre |
80mm |
3" |
| Machine |
|
|
| length |
680mm |
26.75" |
| width |
470mm |
18.5" |
| height |
332mm |
13" |
| weight |
66kg |
145lb |
| Electrical supply |
240/110v/1/50 or 60Hz |
|
|
|
| |
|
|
| |
OPTIONS |
|
| |
|
|
| |
| MACHINE |
METRIC |
IMPERIAL |
| Tailstock taper |
No 1 Morse |
|
| Tailstock quill travel |
25mm |
|
| Automatic Turret |
8 tools - bi - directional |
.393" |
| Tool Section |
10mm |
|
|
|
|
|
|
|
