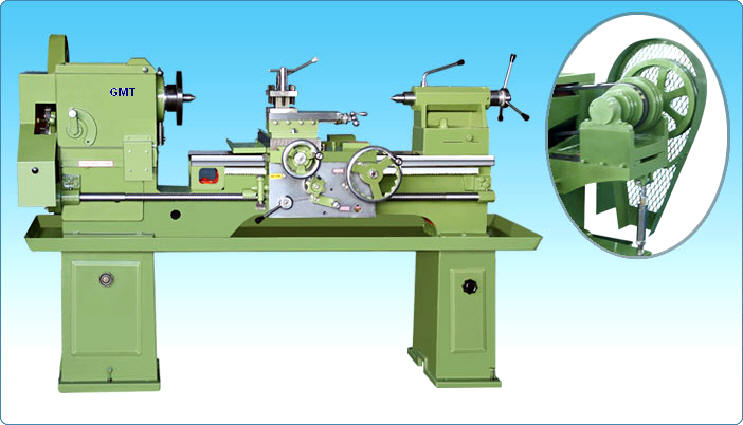

Medium Duty Lathe Machine           Model   MD –1* MD-2 MD-3 MD-4 Bed Length mm/feet 1065/3-5 1375/4-5 1600/5.25 1825/6 Admit Between center mm 215 525 750 975 Weight (Approx.) kg. 560 630 670 700 Dimension (Approx.) (L X W X H) 1300X700X1460 1600X700X1460 1825X700X1460 2050X700X1460     *Only available in gap less model                 Detail Technical specification for all models are as under           Bed     Bed width mm/Inch 280/11 Bed type V/Flate 2/2 Gap length mm 120 Gap length in front of face plate mm 150       Capacity     Height of center mm/Inch 215/8.5 Swing over bed mm 430 Swing over cross slide mm 250 Swing over gap mm 670       Slides     Cross Slide Travel mm 245 Compound slide travel mm 140 Tool Shank section max mm 22       Main spindle     Spindle nose Dia mm   Spindle nose Dia mm   Spindle Bore mm/Inch   Spindle speed No   Spindle range RPM   Spindle drive’V’ Belt Sec-Size   Spindle Motor Power HP/kw         Tail stock     Quill dia mm 50.8 Quill stroke mm 125 Taper in Quill MT 4       Threads     Thread Cutting Metric pitch Nos./mm 13/1 to 6 Thread Cutting English No.s/TPI 19/2 to 24 Lead Screw Dia mm/TPI 31.5/4       Standard Feature     Change Gear Set (Inch & mm), Dead center (2 nos), Centre Adaptor, Chuck flange, Tool Post key, Motor Pulley.
