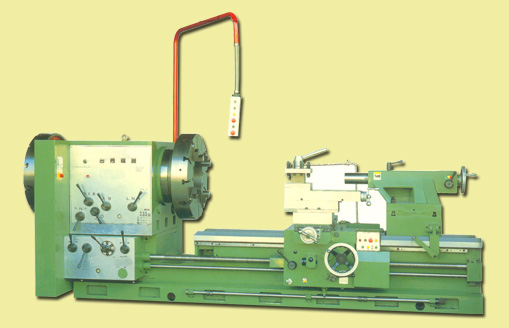

Large Spindle Bore |
|
| |
|
|
| |
| TECHNICAL SPECIFICATION |
| MODEL |
38 Series |
42 Series |
| Center high |
480mm |
530mm |
| Swing over bed |
960mm |
1060mm |
| Swing over cross slide |
650mm |
750mm |
| Swing over gap |
1510mm |
1610mm |
| Width of gap |
570mm |
| Width of bedxhight |
560mm(22")x600(24")mm |
| Length of bed |
3120(60"),3620(80")4620(120"),5620(160")
6620(200"),7620(240"),8620(280") |
| Spindle hole |
156mm(6 1/18") 230mm(9")
310mm12 1/4")360mm(14") |
| Spindle nose |
A 2 - 11, A 2 - 15, A 2 - 20, |
| Number of Spindle speeds |
9 - 600rpm12 6 - 400rpm 12 4 - 300rpm 3- 200rpm |
| Tailstock spindle |
125mm(5") |
| Splinder Taper |
MT #6 |
| Quill travel |
300mm(12") |
| Cross feeds |
0.65 - 0.96(48 Kinds) |
| Longitudinal feeds |
0.13-1.92(48 Kinds) |
| Lead screw diameter |
O 50mm(2")x2TPI |
| Threading range, metric |
2.30mm/Pitchy(44 Kinds) |
| Threading range.inch |
1-16 TPI(42 Kinds) |
| Module pith threads |
1-15MI(32 Kinds) |
| DP.Pitch threads |
2.30P(48 Kinds) |
| Main spindle motor |
20PH.25PH |
| N.W |
5650kgs(60"),6100kgs(80"),6650kgs(120"),
7750kgs(160"),8800kgs(200")
10500kgs(240") 12500kgs(280") |
|
|
| |
|
|
|
|
|
|
