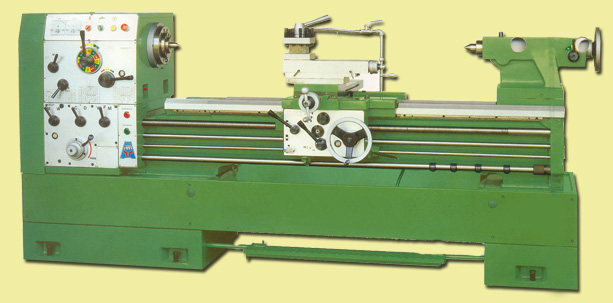

Spindle Bore 80mm Series |
|
| |
|
|
| |
| TECHNICAL SPECIFICATION |
| MODEL |
24 SERIES |
26 SERIES |
30 SERIES |
33 SERIES |
| Center high |
300mm |
330mm |
385mm |
420mm |
| Swing over bed |
600mm |
660mm |
770mm |
840mm |
| Swing over cross slide |
400mm |
460mm |
570mm |
640mm |
| Swing over gap |
820mm |
880mm |
990mm |
1060mm |
| Width of gap |
460mm(18") |
| Width of bed |
400mm(16") |
| Length of bed |
2760(60"),3170(80"),3670(100"),4170(120")
4670(140"),5170(160"),6170(200") |
| Distance between centers |
1500(60"),2000(80"),2500(100"),3000(120")
3500(140"),4000(160"),5000(200") |
| Spindle hole |
80mm(3 1/8) |
| Spindle nose |
A 1- 8, D 1 - 8 |
| Number of Spindle speeds |
12steps(17 - 1200rpm) |
| Spindle taper |
ASA 350 |
| Tailstock spindle |
80mm(31/8) |
| Spindle taper |
MT #5 |
| Quill travel |
230mm(9") |
| Cross feeds |
0.03-0.44(36 Kinds) |
| Longitudinal feeds |
0.06-0.88(36 Kinds) |
| Lead screw diameter |
45mm(1 3/4")x2TPI |
| Threading range, metric |
1-14mm/Pitchy(28 Kinds) |
| Threading range.inch |
2-28 TPI(36 Kinds) |
| Module pith threads |
0.5-7M(22 Kinds) |
| DP.Pitch threads |
4-56P(36 Kinds) |
| Main spindle motor |
7 1/2HP or 10HP |
|
|
| |
|
|
|
|
|
|
