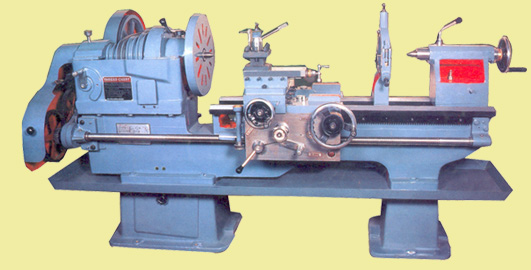

  Heavy Duty Lathe Machine

  SPECIFICATIONS


Bed Length 1675 mm 2135 mm 2475 mm 3050 mm 3660 mm 4270 mm
Bed Type

2 V & 2 Flat

2 V & 2 Flat 2 V & 2 Flat 2 V & 2 Flat 2 V & 2 Flat 2 V & 2 Flat
Bed width 325 mm 325 mm 325 mm 325 mm 325 mm 325 mm
Gap Length in front of face plate 200 mm 200 mm 200 mm 200 mm 200 mm 200 mm

CAPACITIES
Height of Centre 254 mm 254 mm 254 mm 254 mm 254 mm 254 mm
Max. Swing over Bed 475 mm 475 mm 475 mm 475 mm 475 mm 475 mm
Max. Swing in Gap 790 mm 790 mm 790 mm 790 mm 790 mm 790 mm
Max. Swing Over cross-slide 300 mm 300 mm 300 mm 300 mm 300 mm 300 mm
Admit between Centre 500 mm 1000 mm 1600 mm 1915 mm 2525mm 3115 mm

HEAD STOCK
Spindle Nose dia 76 mm 76 mm 76 mm 76 mm 76 mm 76 mm
Taper Bore in Sp. Sleeve MT 4 MT 4 MT 4 MT 4 MT 4 MT 4
Spindle Threads 6 TPI 6 TPI 6 TPI 6 TPI 6 TPI 6 TPI
Spindle Bore Dia 52mm 52mm 52mm 52mm 52mm 52mm
Taper Bore in Sp. Nose MT 6 MT 6 MT 6 MT 6 MT 6 MT 6

TAIL STOCK
Quill Dia. 63.5 mm 63.5 mm 63.5 mm 63.5 mm 63.5 mm 63.5 mm
Taper in Quill MT 4 MT 4 MT 4 MT 4 MT 4 MT 4
Quill movement 185 mm 185 mm 185 mm 185 mm 185 mm 185 mm

SLIDE & TOOL POST
Movement of Cross Slide 255 mm 255 mm 255 mm 255 mm 255 mm 255 mm
Movement of Compound Slide 145 mm 145 mm 145 mm 145 mm 145 mm 145 mm
Tool Shank Section 30 X 30 30 X 30 30 X 30 30 X 30 30 X 30 30 X 30

SPEEDS & FEEDS
No. of Spindle Speed 8 No.s 8 No.s 8 No.s 8 No.s 8 No.s 8 No.s
Low/High (RPM) 25/450 25/450 25/450 25/450 25/450 25/450
No. of Feeds 19 Nos. 19 Nos. 19 Nos. 19 Nos. 19 Nos. 19 Nos.
Longitudinal (mm/Rev.) 0.16 to 2.00 0.16 to 2.00 0.16 to 2.00 0.16 to 2.00 0.16 to 2.00 0.16 to 2.00
Cross (mm/Rev.) 0.04 to 0.48 0.04 to 0.48 0.04 to 0.48 0.04 to 0.48 0.04 to 0.48 0.04 to 0.48

GEAR TRAIN
No. of Threads/Range:
Metric pitch 13 / 1 to 6 13 / 1 to 6 13 / 1 to 6 13 / 1 to 6 13 / 1 to 6 13 / 1 to 6
Inch pitch (TPI) 19/ 2 to 24 19/ 2 to 24 19/ 2 to 24 19/ 2 to 24 19/ 2 to 24 19/ 2 to 24
Lead Screw dia./Thds. 38 / 4 TPI 38 / 4 TPI 38 / 4 TPI 38 / 4 TPI 38 / 4 TPI 38 / 4 TPI

ELECTRICALS
Motor power 3.H P./2.25 Kw 3.H P./2.25 Kw 3.H P./2.25 Kw 3.H P./2.25 Kw 3.H P./2.25 Kw 3.H P./2.25 Kw
Power Supply

415 Valts
3 Phase
50 Hz A.C.1440 RPM

 415 Valts
3 Phase
50 Hz A.C.1440 RPM		 415 Valts
3 Phase
50 Hz A.C.1440 RPM		 415 Valts
3 Phase
50 Hz A.C.1440 RPM		 415 Valts
3 Phase
50 Hz A.C.1440 RPM		 415 Valts
3 Phase
50 Hz A.C.1440 RPM

BELT DRIVE
Nylon Belt or ‘V’ 50 x 1825 50 x 1825 50 x 1825 50 x 1825 50 x 1825 50 x 1825
Belt‘V ‘ Belt C-68 C-68 C-68 C-68 C-68 C-68

GENERAL
Weight (Approx) 1350 Kg. 1350 Kg. 1350 Kg. 1350 Kg. 1350 Kg. 1350 Kg.
Floor Space (Apprx.)
L. 2590 mm 2600 mm 3650 mm 3950 mm 4575 mm 5220 mm
B. 1200 mm 1200 mm 1200 mm 1200 mm 1200 mm 1200 mm
H. 1400 mm 1400 mm 1400 mm 1400 mm 1400 mm 1400 mm
